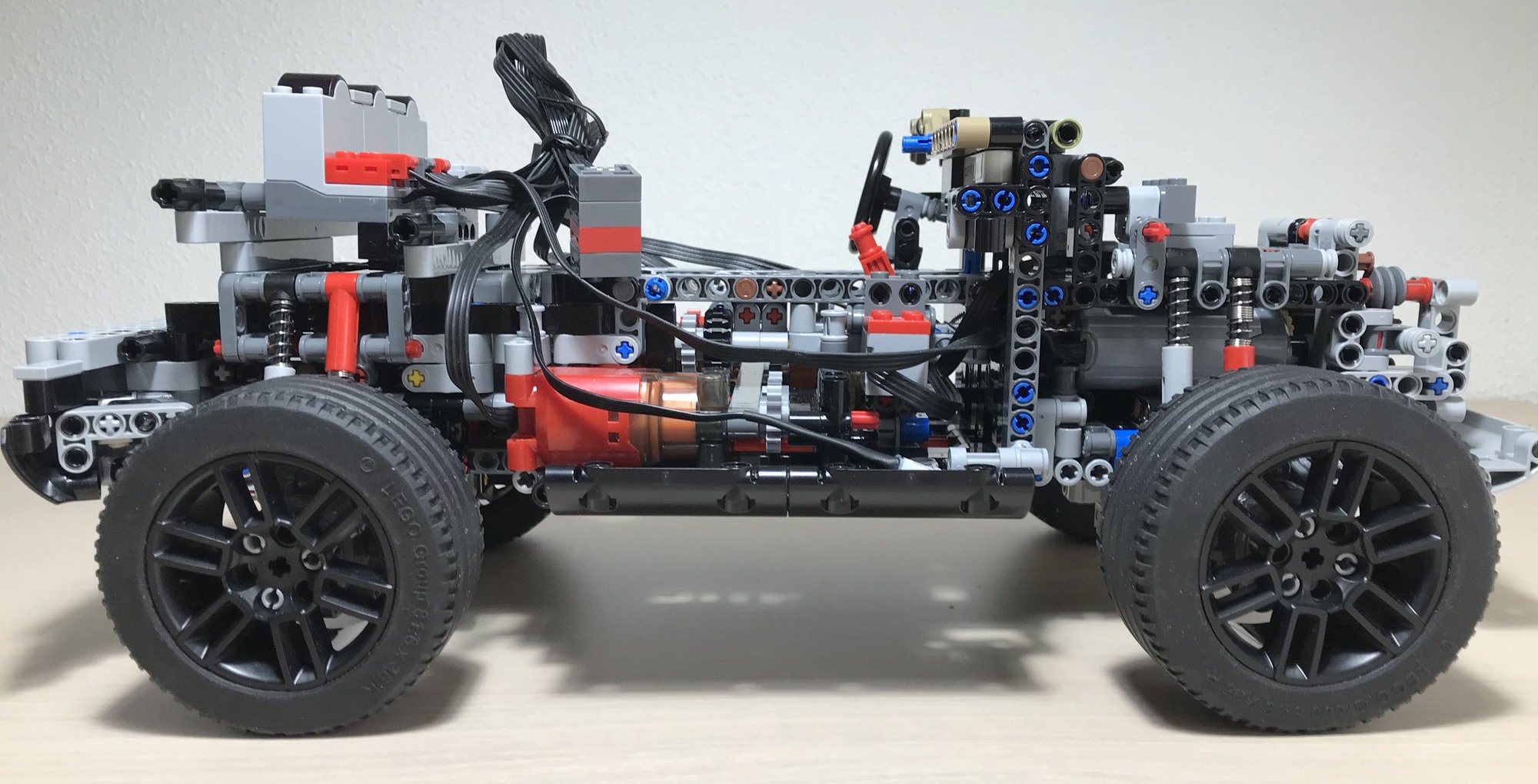

42110 Land Rover Defender chassis, v1
This is my first attempt at motorizing the LEGO 42110 Land Rover Defender set. It features two PF L motors for driving and a servo motor for steering. I used non-original motors, which have higher RPM than the original ones, to achieve higher speed. The center differential is absent. The two-speed gearbox is shifted by a CaDA micro motor.
All functions work fine, but I’m disappointed with the performance and reliability of this version - the gears sometimes slip and crunch when driving over obstacles. Also, there is too much play in the steering mechanism.
Based on: MOC-102990.
Specs
- PF Motors (1 Servo, 2 L Red motors)
- Motorized gearbox (1 CaDA micro motor)
- Motorized winch (1 CaDA micro motor)
- Planetary wheel hubs
- Reinforced gearbox
- New type differentials in axles (12:28)
- No central differential
- No fake engine
- Working steering wheel
- 3 PF receivers - 2 receivers operate on the same channel and each controls its own L motor, the third receiver controls the winch and the gearbox.
- Powered by a 2S LiPo battery
Photos
