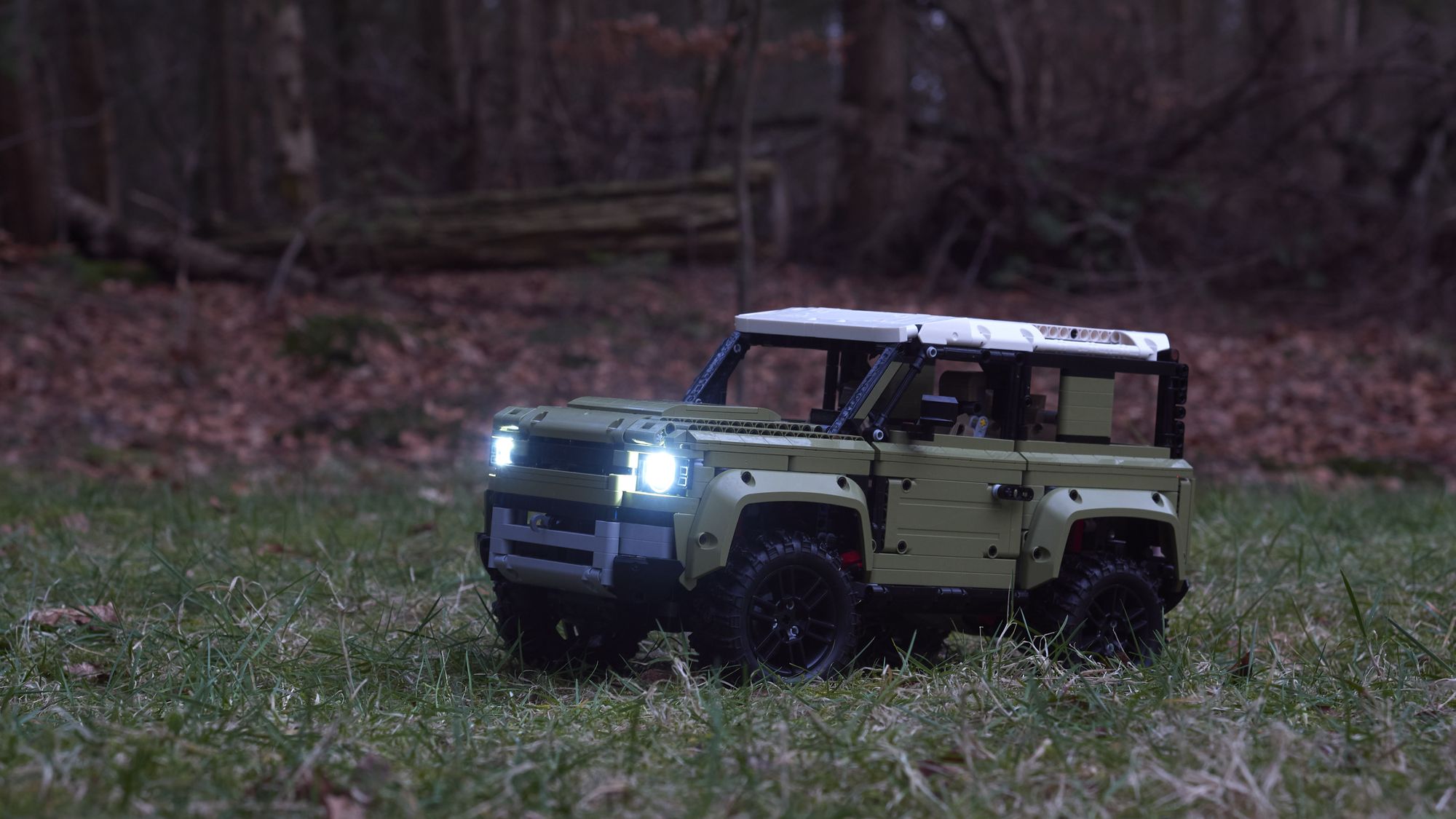

42110 Land Rover Defender, v5 (with 4L motors and RC electronics)
This is an updated version (v5) of my Land Rover Defender 42110 with RC electronics and 4 L motors for driving. In this version, I significantly improved the strength of the chassis and the gearbox, and finally achieved what I had long been aiming for — the model is now durable and capable enough to play with outdoors. The body is built in the stock version.
Specs
- Driving: 4 PF Red L motors
- Steering: Geek Servo motor
- Open differentials in axles
- Planetary wheel hubs
- Two speed gearbox with lockable center differential in the low gear, switched by a Geek Servo motor
- Lifted suspension
- 90 mm RC tyres
- Winch: 1 CaDA micromotor
- No fake engine
- Working steering wheel
- Custom LED lights
- Powered by 3S LiPo (3x14500)
- Turning diameter (by wheels):
- 1st gear (central diff closed): 110cm
- 2nd gear (central diff open): 108cm
- Curb weight: 2.2 kg
Gearing:
| Gear | Central diff | Gears | Final ratio |
|---|---|---|---|
| 1st | Locked | 12:20 -> 20:12 -> 20:28 (diff in axles) -> Planetary hubs | 7.56:1 |
| 2nd | Open | 16:16 -> 20:12 -> 20:28 (diff in axles) -> Planetary hubs | 4.53:1 |
Video
Radio configuration
- 1ch (steering): 100%
- 3ch (gearbox): 32%
- 4ch (winch): 47%
